DIP-View

DIP-View 是高解析度偏折测量(High-Resolution Deflectometry)领域的先驱,专注于关键表面计量技术,适用于翘曲(Warpage)、粗糙度(Roughness)及奈米拓扑(Nano-Topography)等应用。

DIP-View 服务于多个产业,包括半导体、汽车及光学领域,致力于推动颠覆性的计量技术创新。

总部位于法国图卢兹,DIP-View 持续拓展精密测量技术的前沿。

https://www.dip-view.com/


View as Grid List
Sort by
Display per page

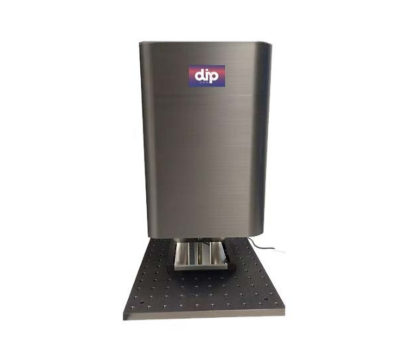

D-Surface View

DipView D-Surface View is intended to help manufacturers of wafers up to 300-mm diameter reduce costs and chipmakers to improve yields for devices made with finest process technology. The equipment can be used for wafer surface quality control, it qualifies surface roughness, shape, flatness and topography in one single measurement of a bare or processed wafer. Its very high resolution performances bring fast, reliable and highly sensitive solution particularly adapted to off-line or in-line, surface local / global inspections in multiple industries.
0.000 (CNY)
