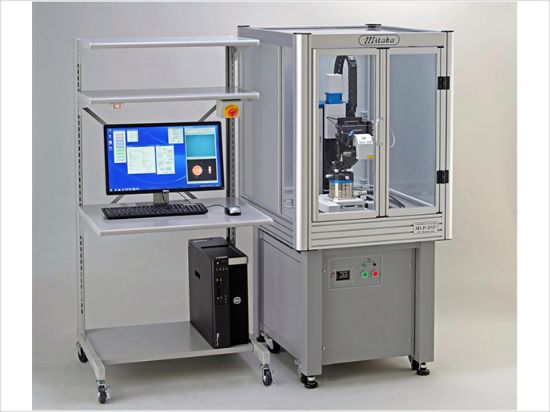

MLP-3 “Point autofocus probe 3D form measuring instrument” Renewed the design of MLP-2, MLP-3 is a standard model with the high-speed θ stage and the AF function. Having 3D measuring and evaluation functions, it measures contour / surface topography of all kinds of parts without destruction. SKU: MLP-3 0.000 (CNY) Qty: Add to cart Custom wishlist OK Add to wishlist Add to compare list Email a friend MLP-3 “Point autofocus probe 3D form measuring instrument” Standard model of contour and 3D measurements Renewed the design of MLP-2, MLP-3 is a standard model with the high-speed θ stage and the AF function. Having 3D measuring and evaluation functions, it measures contour / surface topography of all kinds of parts without destruction. Features Adding 3D measuring function to MLP-2 Large measuring area in high resolution(measuring range: less than φ80mm, resolution: axial direction 0.001µm, circumferential direction: 0.01µm) Functions 3D measurement Contour measurement (polygons, profiles, roughness) Image capture Contour / size evaluation Surface roughness evaluation Gear profile measurement / evaluation (optional) Evaluation of cutting edge of tools (optional) Roundness evaluation (optional) Measurement example that MLP-3 is perfect for Tip of turning tool Offering 3D view, size evaluation and roughness measurement. Plastic gear High precision measurement of plastic gear with low reflectivity. Microgear Capable of measuring microgears with less than module 0.1 which contact measuring instrument cannot measure. Internal gear Capable of measuring internal tool gear and inner circumference by mounting the inner diameter measuring unit (optional). Tooth flank of a precision gear Form measurement and surface roughness evaluation of a precision gear. End mill measurement High precision measurement of outer diameter, rake angle and clearance angle out of profile data. Precision micro punch Easy measurement and evaluation of precision punch. Contour form and edge measurements of drill The laser probe offers quantitative measurement of tools in high precision. Measurable Examples Fresnel lens molding... Grating Volume of solder Microlens array HDD head suspension High-density mountin... Surface of aspherica... Fingerprint Human hair Unevenness of evapor... Diamond abrasive gra... BGA Warpage and waviness... Grinding work surfac... Wear volume of brake...
