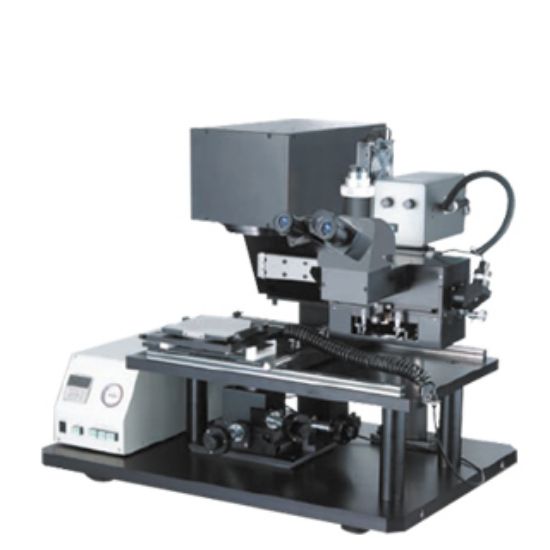

Desk Top Mask Aligner

Name: Desk Top Mask Aligner
SKU: EMA-400
Availability: InStock

FEATURE *Economical, Compact & Hi-Level Performance * Viewing fused image of two alignment marks in the field of view. * Integrator lens for exposure. * LED illuminator APPLICATION (Micromachine development in R&D center and university) *Acuator, Pressure Sensor, Acceleration Sensor, Power Device, etc. * Exposure for Flip Chip/BGA/CSP. * Exposure for Optical/High Speed Communication Components.

SKU: EMA-400

Call for pricing

Qty:

FEATURE
*Economical, Compact & Hi-Level Performance
* Viewing fused image of two alignment marks in the field of view.
* Integrator lens for exposure.
* LED illuminator
APPLICATION
(Micromachine development in R&D center and university)
*Acuator, Pressure Sensor, Acceleration Sensor, Power Device, etc.
* Exposure for Flip Chip/BGA/CSP.
* Exposure for Optical/High Speed Communication Components.

Alignment Scope
Objectives separation	15 to 75mm
Total magnification	100X
Illuminator for observation	Green LED (λ=540nm)
X, Y Movement range of stage	±5 mm
θ Adjustment	±5°
Utility
Power source for main body and mercury lamp	AC 100V 50/60Hz 15A
Vacuum source	Below 21.3 Kpa (-80 Kpa from atmospheric pressure)
Pressure Source	More than 0.2MPa (N² gas or Dry clean air)
Exposure Unit
Lens	Integrator lens
Mercury lamp	250W ultra-high pressure vapor mercury lamp
Effective exposure area	Max φ100 mm
Intensity distribution	±5% or less
Intensity of illumination	20 mW/cm² (405 nm)
Exposure time control	Digital timer and rotary solenoid
Mercury Lamp Lighting Unit	AC 100V
