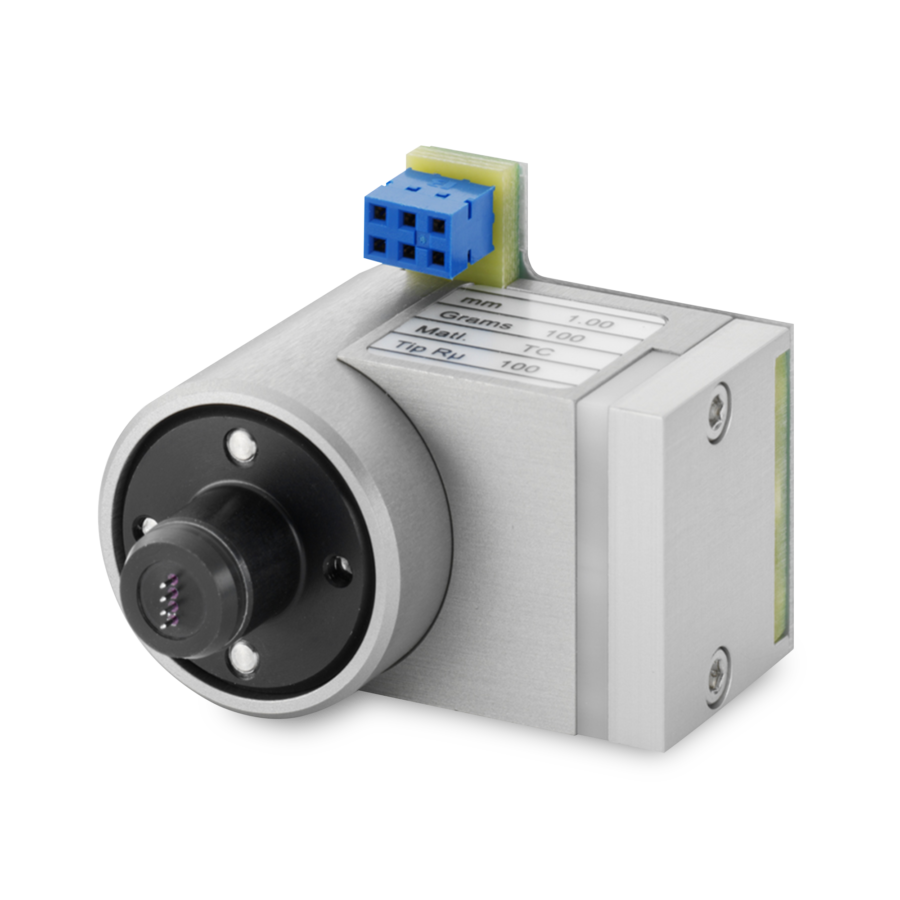

Cartridge probe with 6-way connector (CDE)

Name: Cartridge probe with 6-way connector (CDE)
Availability: InStock

Jandel公司生产的具有6个连接通道的cartridge型四探针探头.其创意设计是与CDE系统相兼容.

0.000 (CNY)

Qty:

Specifications
Probe spacing	0.500mm, 0.635mm, 1.00mm, 1.591mm (needle to needle)
Tolerance	+/- 10 microns
Arrangement	Linear or square array
Needles	Tungsten carbide 0.4mm diameter (0.3mm diameter for close spacing)
Radii	12.5, 25, 40, 100, 150, 200, 300, 500 microns
Retraction to pad	Types A, B, C, D and E have 1.5mm. Types F, G and H have 1.00mm. Types FC, GC and HC have 0.75mm.
Planarity	+/- 0.025mm or better
Loads	Fixed between 10g and 200g
Electrical leakage	1013 ohms resistance between needles at 500 volts
