Description

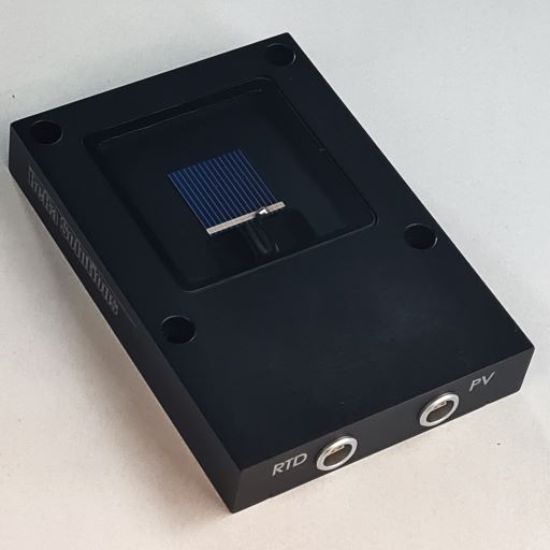

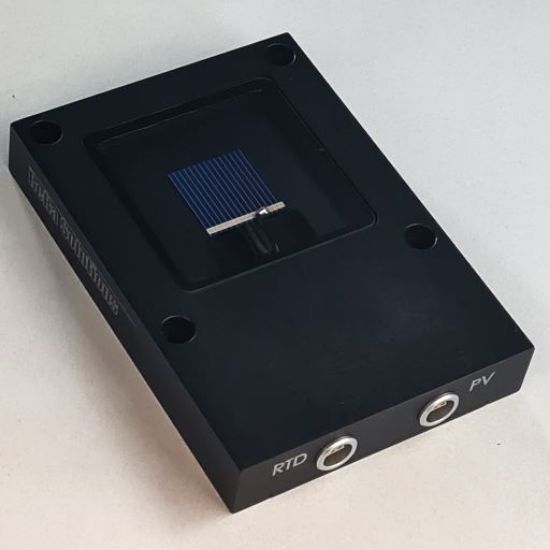

The standard Mono Crystalline Silicon Reference Cell is a high-quality precision sensor for the determination of solar simulator irradiance levels. ReRa Solutions uses the Radboud University Nijmegen PV Measurement Facility to calibrate the cells. The calibration is done against an NREL calibrated reference cell. This results in reference cells which are very well suited for indoor applications. All reference cells meet the standards of the World Photovoltaic Scale (WPVS) and the requirements of IEC 904-2.
Key features Silicon Reference Cell:
- Mono crystalline silicon solar cell (not encapsulated)
- Mismatch corrected
- Irradiance and temperature readout
- Protective Quartz window
- Several filter options (KG# window) to match any spectral response (optional)
- Open or shunted version
- 2 LEMO sockets for cell and pt100
- Including full calibration report (IV-curve plot, Isc, Voc, Impp, Vmpp and Fill Factor)
- Including 4-wire reference cell cable
- Including protective suitcase
Models:
- Shunted Silicon Reference Cell (RR-1001)
- Open Silicon Reference Cell (RR-1002)
Which model should I choose?
Options:
All cells can be ordered with a KG window for measurements of specific cell materials. For example: KG3 window (RR-1001KG3)
