LETO-3 Phase Only Spatial Light Modulator

The LETO-3 phase only Spatial Light Modulator is based on a reflective LCOS microdisplay with full HD (1920 x 1080 pixel ) resolution. With a pixel pitch of 6.4 µm and a small interpixel gap of 0.2 µm the LETO-3 SLM provides a high fill factor of 93%. The LETO-3 Spatial Light Modulator offers a reflectivity between 62% up to 75% (dependent on wavelength and version). The device offers diffraction efficiencies of more than 80% (16 level blazed grating) which leads to a total light efficiency of ~ 60%. The LETO-3 SLM driver is prepared to work in color-field-sequential (CFS) mode e.g. with color-switchable LASER or LED lighting and the device features an LED-connector which can be used to synchronize the light source with the device. The driver features 4 slots with preconfigured CFS configurations for different environments which can be slected using the Configuration Manager Software.
商品库存单位(SKU): LETO-3
0.000 (CNY)

LETO-3 Phase Only Spatial Light Modulator

The LETO-3 Phase Only Spatial Light Modulator is our fast SLM platform with high band width. The SLM is capable of color sequential phase operation.

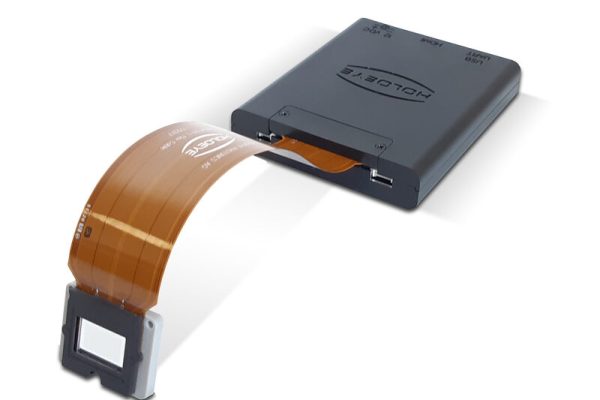

LETO-3 LCOS Spatial Light Modulator

LETO-3 Spatial Light Modulator – Microdisplay Features

Display Type

Reflective LCOS (Phase Only)

Resolution

1920 x 1080

Pixel Pitch

6.4 µm

Fill Factor

93 %

Active Area

12.29 x 6.91 mm (0.55″ Diagonal)

Addressing

8 Bit (256 Grey Levels)

Signal Formats

HDMI – HDTV Resolution

Input Frame Rate

60 Hz / 180 Hz

The LETO-3 phase only Spatial Light Modulator is based on a reflective LCOS microdisplay with full HD (1920 x 1080 pixel ) resolution. With a pixel pitch of 6.4 µm and a small interpixel gap of 0.2 µm the LETO-3 SLM provides a high fill factor of 93%.

The LETO-3 Spatial Light Modulator offers a reflectivity between 62% up to 75% (dependent on wavelength and version). The device offers diffraction efficiencies of more than 80% (16 level blazed grating) which leads to a total light efficiency of ~ 60%.

The LETO-3 SLM driver is prepared to work in color-field-sequential (CFS) mode e.g. with color-switchable LASER or LED lighting and the device features an LED-connector which can be used to synchronize the light source with the device. The driver features 4 slots with preconfigured CFS configurations for different environments which can be slected using the Configuration Manager Software.
