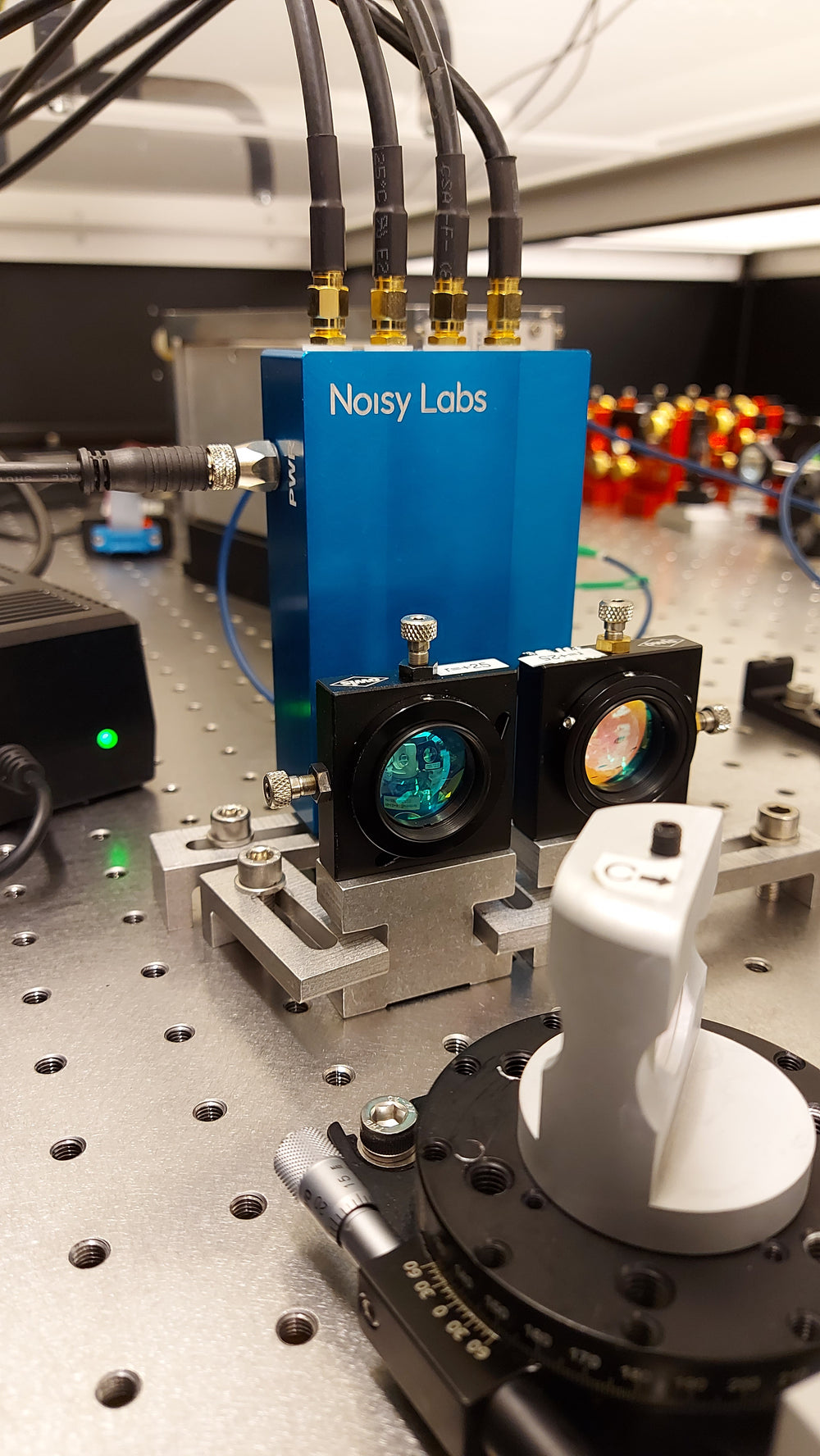

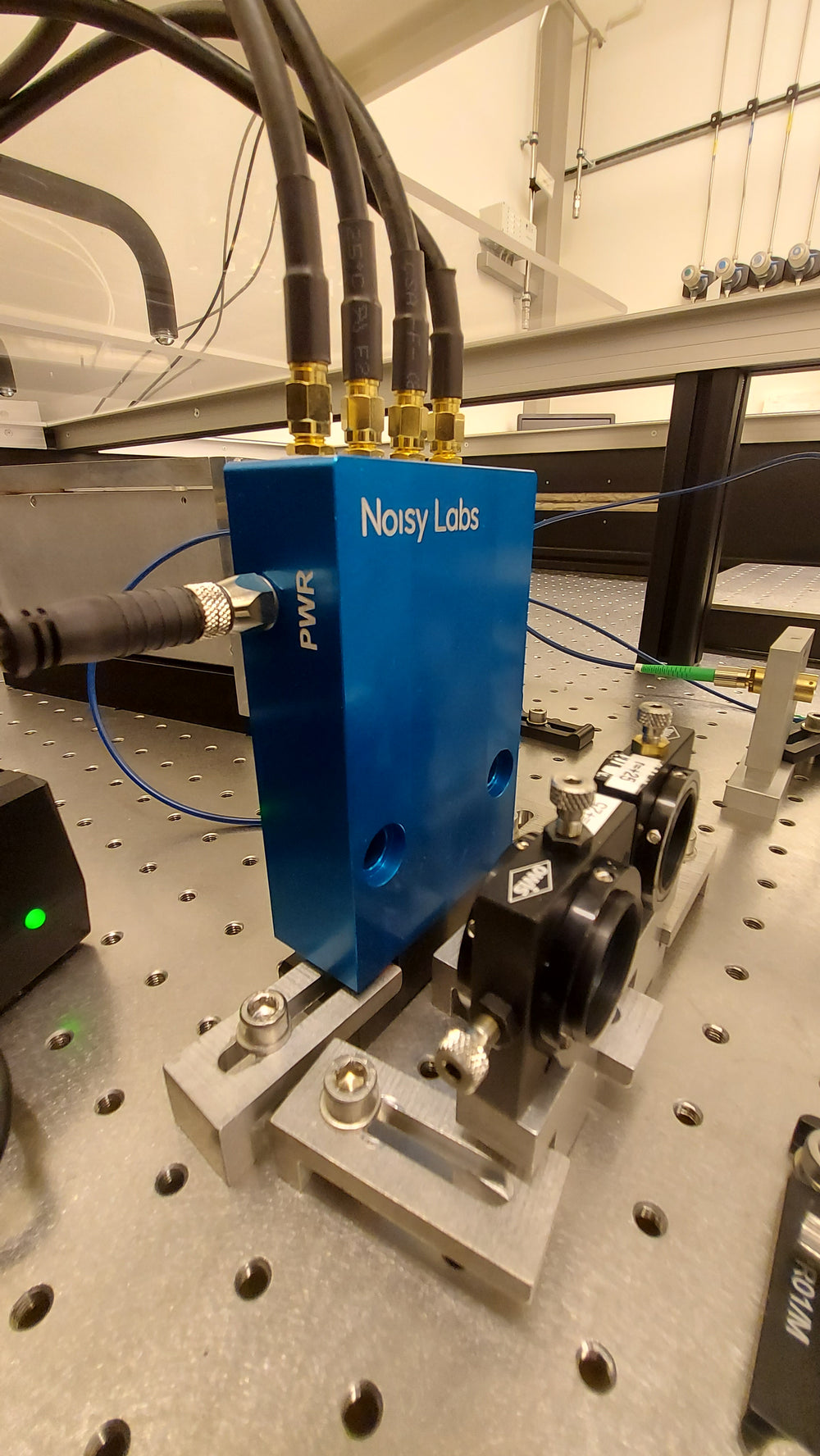

General Purpose Balanced Detector
Noisy Labs' general purpose balanced detectors are engineered for precision measurements of signals carried by cw laser light. These systems exhibit very low electronic dark noise, resulting in a high dark noise clearance of more than 20 dB with maximally 20 mW of local oscillator power in the MHz frequency range. The common mode suppression ratio surpasses 50 dB at 1 MHz. Our general purpose balanced detectors are available at 1064 nm, 1550 nm and in the 400 nm to 1030 nm range.
Noisy Labs' general purpose balanced detectors are engineered for precision measurements of signals carried by cw laser light. These systems exhibit very low electronic dark noise, resulting in a high dark noise clearance of more than 20 dB with maximally 20 mW of local oscillator power in the MHz frequency range. The common mode suppression ratio surpasses 50 dB at 1 MHz.
Our general purpose balanced detectors are available at 1064 nm, 1550 nm and in the 400 nm to 1030 nm range.
General characteristics
| AC high pass cutoff | customizable | f | - | 300 | - | kHz |
| Output impedance | - | Z | - | 50 | - | Ω |
| DC output voltage | - | - | - | ±5 | - | V |
| Supply voltage | - | - | - | ±12 | - | V |
| Operating temperature range | - | T | 15 | - | 35 | °C |
| Humidity | - | - | 30 | 40 | 50 | % |
| Dimensions | W x H x D | - | - | 80 x 138 x 29 | - | mm |
