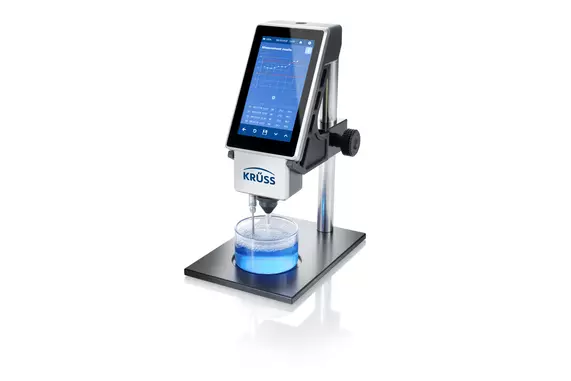

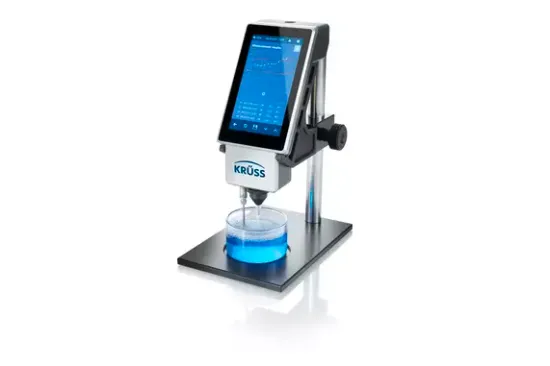

便携式表面张力仪

用于清洗效果和镀膜槽的可移动式质量控制浸入 – 点击 – 读数：便携式 BPT Mobile 采用表面张力(SFT)这个参数在几秒钟内，能够测定浴液表面活性剂含量。由于是专门评估，质量检验员可立即判断浴液是否适用。此外，为了及时调节浴液，便携式 BPT Mobile 显示消耗等原因造成表面活性剂含量随时间降低的过程。

0.000 (CNY)

数量:

INSTRUMENT DIMENSIONS

Footprint	85 mm × 55 mm (W × D)
Height	220 mm
Weight (without accessories)	0.6 kg

INTERFACES

PC	USB-Micro-B
Memory	up to 20 million measurements

ENVIRONMENT

Operating temperature	5 to 60 °C
Humidity	without condensation

POWER SUPPLY

Voltage	5 V (powered via USB)
Power consumption	2.5 W
Battery runtime	10 h operating time

HOUSING AND PERIPHERALS

Touch display	integrated color IPS display (480 × 854 pixel, size 5'')
Stand	included

SAMPLE DIMENSIONS

Min. recommended sample volume	15 mL (sample vessel SV23 recommended)

TEMPERATURE MEASUREMENT

Range	0 to 100 °C
Resolution	0.1 °C
Locations	sample liquid

SOFTWARE

Software type	integrated user interface
Software modules	Bubble pressure (included)

BUBBLE PRESSURE

Results	dynamic surface tension vs. surface age dynamic surface tension at constant surface age single dynamic surface tension / bath concentration (optional)
Range (surface tension)	10 to 100 mN/m
Resolution (surface tension)	0.1 mN/m
Precision (surface tension)	±0.5 mN/m
Range (surface age)	10 to 30000 ms
Resolution (surface age)	1 ms
Precision (surface age)	max. 7.5 %

DATA OUTPUT

Type	Microsoft Excel (xml format) via USB

PRESSURE MEASUREMENT

Maximum pressure	1250 Pa
Precision	2 %
