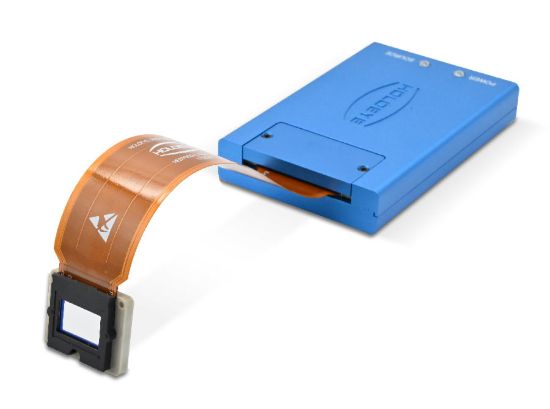

GAEA-C Spatial Light Modulator

The GAEA-C phase only Spatial Light Modulator (SLM) consists of a driver unit with standard digital video interface (HDMI) and a phase only LCOS (Liquid Crystal on Silicon) microdisplay with 4094 x 2400 pixel resolution and 3.74 µm pixel pitch leading to an active area diagonal of 0.7”. The GAEA-C is a plug & play phase modulator device and can be addressed with phase functions via standard graphics cards as an extended monitor device. 8 bit gray level patterns (= 8 bit phase levels) can be addressed. Addressing can be done using the supplied Pattern Generator software, the SLM Slideshow Player software or standard image viewer software. HOLOEYE also provides an SLM Display Software Development Kit (SDK) which provides APIs for different programming languages. The very small pixel size of the GAEA-C SLM display enables high diffraction angles.
商品库存单位(SKU): GAEA-C
0.000 (CNY)

GAEA-C Spatial Light Modulator

The GAEA-C Spatial Light Modulator is a compact version of the 4K GAEA-2.1 SLM with a cost optimized driver solution.

GAEA-C Spatial Light Modulator

GAEA-C LCOS SLM – Microdisplay Features

Display Type

Reflective LCOS (Phase Only)

Resolution

4094 x 2400 Pixel

Pixel Pitch

3.74 µm

Fill Factor

90 %

Active Area

15.56 x 9.22 mm (0.7″ Diagonal)

Addressing

8 Bit (256 Grey Levels)

Signal Formats

HDMI-2 – 4 K Resolution

Input Frame Rate

 30 Hz

Max. Spatial Resolution

133.5 lp/mm

The GAEA-C phase only Spatial Light Modulator (SLM) consists of a driver unit with standard digital video interface (HDMI) and a phase only LCOS (Liquid Crystal on Silicon) microdisplay with 4094 x 2400 pixel resolution and 3.74 µm pixel pitch leading to an active area diagonal of 0.7”.

The GAEA-C is a plug & play phase modulator device and can be addressed with phase functions via standard graphics cards as an extended monitor device. 8 bit gray level patterns (= 8 bit phase levels) can be addressed. Addressing can be done using the supplied Pattern Generator software, the SLM Slideshow Player software or standard image viewer software. HOLOEYE also provides an SLM Display Software Development Kit (SDK) which provides APIs for different programming languages.

The very small pixel size of the GAEA-C SLM display enables high diffraction angles.
